Punzones de radio con soporte R 7-50
Utillaje para plegadora Trumpf

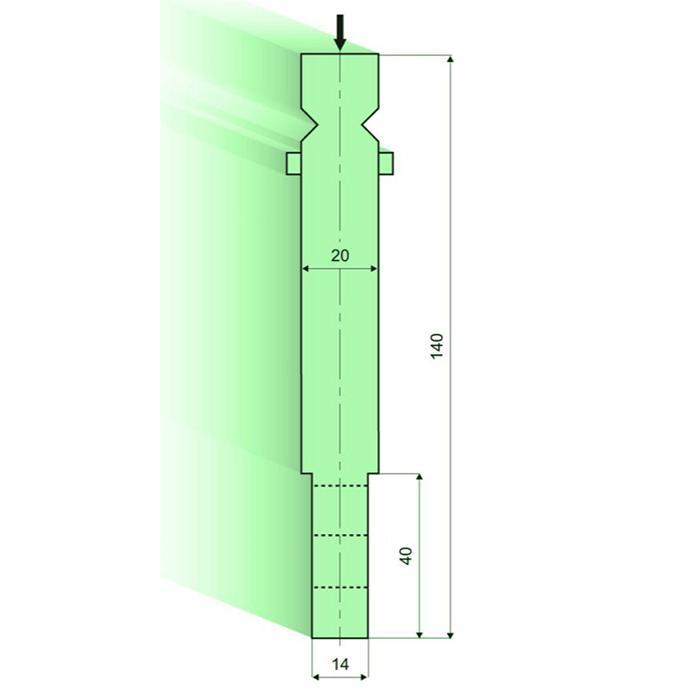

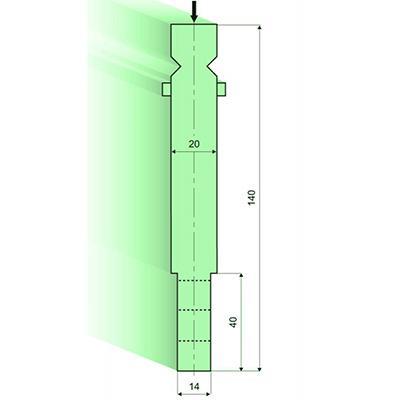

| F 15.010 (800KN/m Máx.) |
| 835mm | 16.0KG |
| 412mm | 8.0KG |

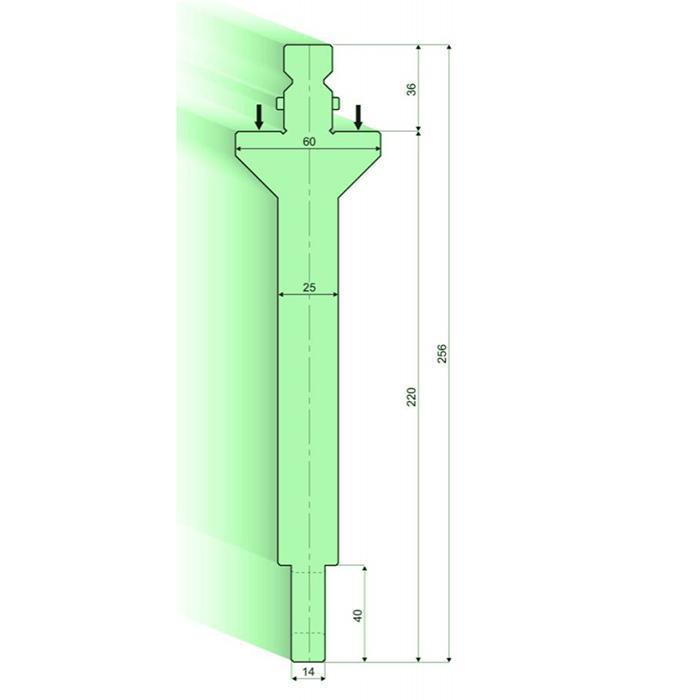

| F 15.018 (800KN/m Máx.) |
| 835mm | 41.0KG |
| 415mm | 20.5KG |

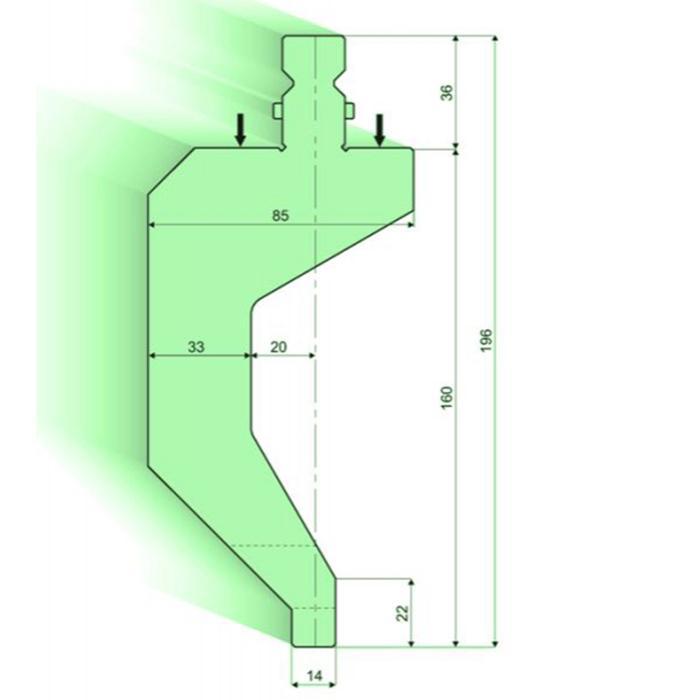

| F 15.014 (800KN/m Máx.) |
| 835mm | 47.0KG |
| 415mm | 23.5KG |

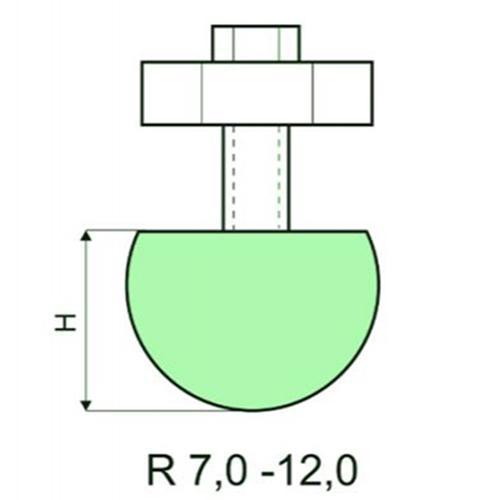

| Modelo | R(mm) | H(mm) | 835mm | 415mm |
| F10.300 | 7.0 | 11.5 | 0.90kg | 0.45kg |
| F10.301 | 7.5 | 11.5 | 1.00kg | 0.50kg |
| F10.302 | 8.0 | 13.0 | 1.20kg | 0.60kg |
| F10.303 | 9.0 | 16.0 | 1.60kg | 0.80kg |
| F10.304 | 10.0 | 16.0 | 2.00kg | 1.00kg |
| F10.305 | 11.0 | 16.0 | 2.10kg | 1.05kg |
| F10.306 | 11.5 | 19.0 | 2.50kg | 1.25kg |
| F10.307 | 12.0 | 20.0 | 2.70kg | 1.35kg |

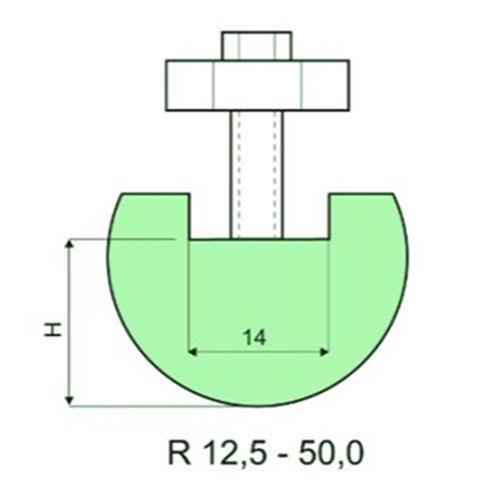

| Modelo | R(mm) | H(mm) | 835mm | 415mm |
| F10.308 | 12.5 | 16.0 | 3.30Kg | 1.65kg |
| F10.309 | 13.0 | 17.0 | 3.50kg | 1.75kg |
| F10.310 | 14.0 | 19.0 | 3.80kg | 1.90kg |
| F10.311 | 15.0 | 20.0 | 5.00kg | 2.50kg |
| F10.312 | 16.0 | 21.0 | 5.10kg | 2.55kg |
| F10.313 | 17.0 | 21.5 | 5.80kg | 2.90kg |
| F10.314 | 17.5 | 22.0 | 6.00kg | 3.00kg |
| F10.315 | 19.0 | 25.0 | 6.30kg | 3.15kg |
| F10.316 | 20.0 | 24.0 | 6,80kg | 3.40kg |
| F10.317 | 22.5 | 25.0 | 8.00kg | 4.00kg |
| F10.318 | 25,0 | 29.0 | 10.00kg | 5.00kg |
| F10.319 | 27.5 | 34.0 | 12.50kg | 6.25kg |
| F10.320 | 30.0 | 34.0 | 13.50kg | 6.75kg |
| F10.321 | 35.0 | 45.0 | 21.00kg | 10.50kg |
| F10.322 | 40.0 | 45.0 | 24.00kg | 12.00kg |
| F10.323 | 45.0 | 50.0 | 29.50Kg | 14.75kg |
| F10.324 | 50.0 | 54.0 | 34.50kg | 17.25kg |
